Description

Overview

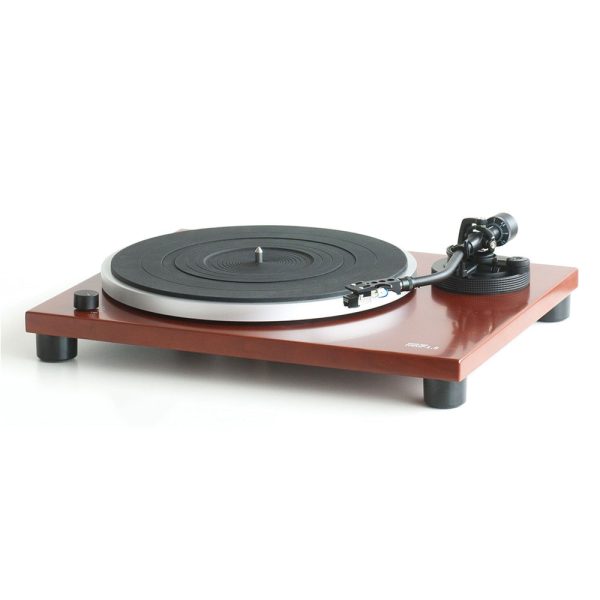

Music Hall MMF1.5 Turntable Phono PreAmp S Shaped Tone Arm With Mounted Cartridge Cherry Wood

Enjoy your favorite vinyl records with the mmf-1.5 3-Speed Turntable from Music Hall. It plays vinyl records at 33 1 3, 45, and 78 rpm and features a built-in speed control circuit that ensures the accuracy of the three speeds. A built-in phono preamp enables you to connect the turntable directly to your current stereo system or amplifier. The headshell is removable and comes with a Music Hall Melody cartridge preinstalled and precision aligned. The belt comes pre-mounted to the platter, making setup fast and easy. A hinged dust cover keeps your mmf-1.5 protected when not in use.

• Real cherry wood veneer
• Built-in phono preamplifier that can be bypassed by plugging the mmf-1.5 into a separate phono preamp
• 9 S-shaped aluminum tonearm
• Removable headshell for easy cartridge changing
• Low-noise belt-drive design
• Stiff and solid MDF plinth
• Separately isolated DC synchronous motor for speed stability
• Three-speed motor provides 33 1 3, 45, and 78 rpm
• Mounted and aligned Music Hall Melody moving magnet cartridge
• Adjustable electronic speed control
• Vibration-damping feet
• Gold RCA connectors and detachable phono cable
• Full-size aluminum platter and vibration-damping platter mat included
• Worldwide compatibility
• Dust cover and 45 rpm adapter included
• Quick and easy to assemble

• In The Box

  • Music Hall mmf-1.5 3-Speed Turntable
  • Counter Weight
  • Platter Mat
  • Headshell Assembly
  • 45 rpm Adapter
  • Power Adapter
  • 2 x Hinges
  • 3 x Transfer Plug Adapters
  • 2P RCA Cable
  • Dust Cover
  • Platter
  • Limited 1-Year Warranty

  • Specs

    Turntable

    Type		3-speed full manual
    Motor		DC motor
    Driving Method		Belt drive
    Turntable Platter		12 305 mm diameter, aluminum die-cast
    Speeds		33 1 3, 45, and 78 rpm
    Wow and Flutter		Typical: Less than 0.1% WTD at 3 kHz RMS (CD-4005) Limit: Less than 0.15% WTD at 3 kHz RMS (CD-4005)
    S N Ratio		Typical: More than 65 dB (DIN-B) (SS-4242) Limit: More than 62 dB (DIN-B) (SS-4242)
    Speed Tolerance at Normal Pitch		3000 Hz +2 -1% (CD-4005)

    Preamplifier s Cartridge Section

    Type		Moving magnetic cartridge
    Stylus		Diamond
    Channel Separation		More than 15 dB at 1 kHz (CD-4005)
    Channel Balance		Within 2.5 dB at 1 kHz (CD-4005)
    Phono Output Level		1.5-3.6 mV at 1 kHz, 1.97 5 cm per sec (CD-4005)
    Line Output		90-216 mV at 1 kHz, 1.97 5 cm per sec (CD-4005)
    RIAA Equalization Curve Accuracy		20 Hz – 20 kHz: +1 -3 dB

    Cartridge

    Type		Music Hall Melody
    Output Voltage		2.5 mV + -3 dB at 1 kHz, 1.4 3.54 cm per sec
    Channel Separation		At 1 kHz: Over 18 dB
    Channel Balance		At 1 kHz: 25 dB or less
    Frequency Response		At 10 1 kHz: + -3 dB
    Tracking Force		Vertical: 2.0 + -0.5 g

    Tonearm

    Type		Static balanced S-shaped
    Effective Arm Length		9 230 mm
    Overhang		0.59 15 mm
    Offset Angle		22°
    Tracking Error Angle		3° or less
    Stylus Pressure Adjustment		Rotation movability (1 rotation 4 g)
    Cartridge Weight		5.0 – 8.5 g Including Headshell: 15.0 – 18.5 g
    Anti-Skating Adjustment		0 – 3 g
    Arm Lifter		Oil damper type
    Stylus Height		8.0 – 10.5 mm
    Lifter Descent Time		1.5 – 3.0 sec (Stylus Pressure: 2 g)
    Sensitivity		Horizontal Vertical: Less than 0.2 g

    General

    Power Supply		12 VDC, 2 A, universal
    Power Consumption		4 W
    Dimensions		17.1 x 14.5 x 5.0 43.5 x 36.7 x 12.7 cm
    Weight		12 lb 5.4 kg

    Packaging Info

    Package Weight		15.7 lb
    Box Dimensions (LxWxH)		21 x 17.3 x 9
